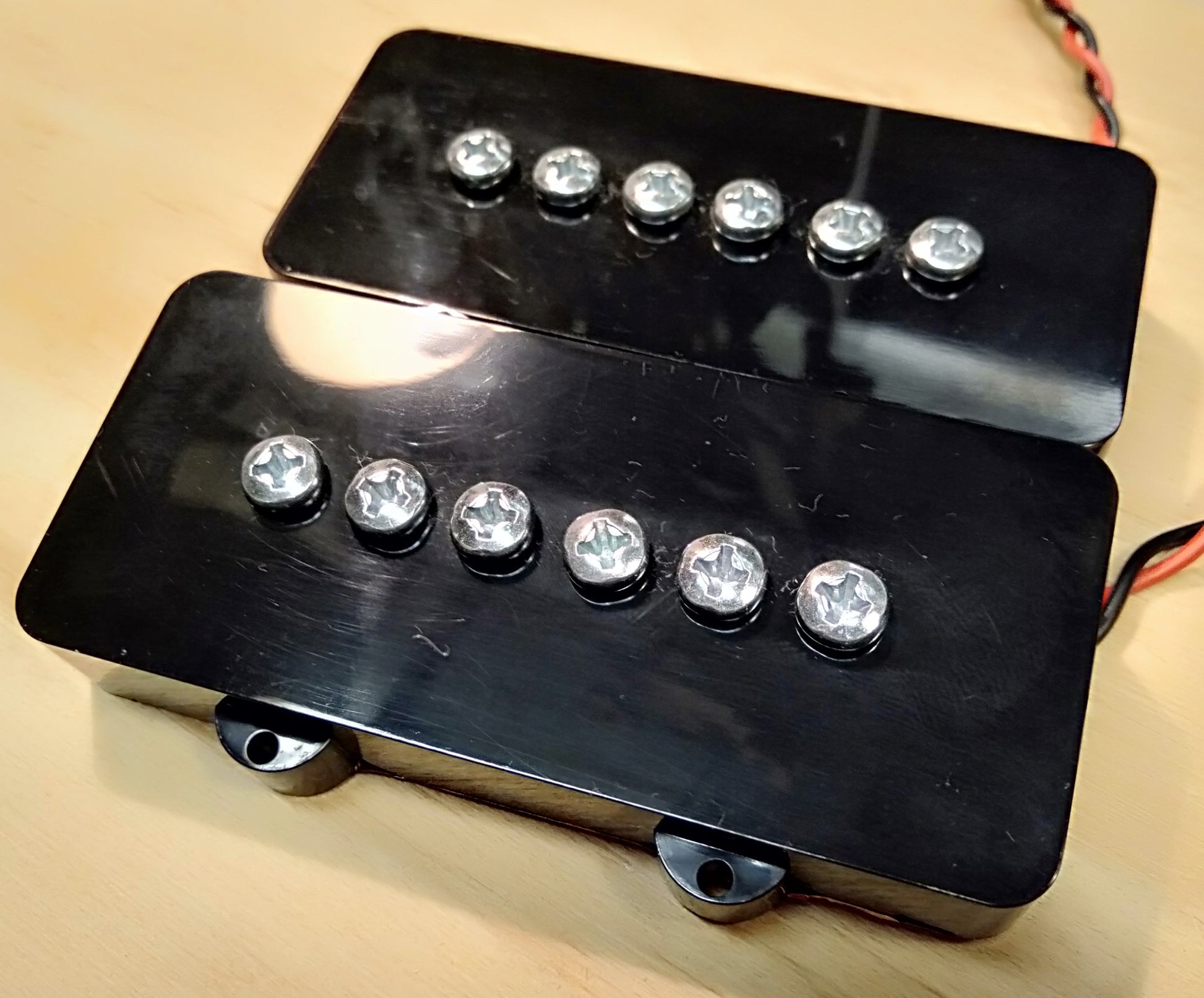

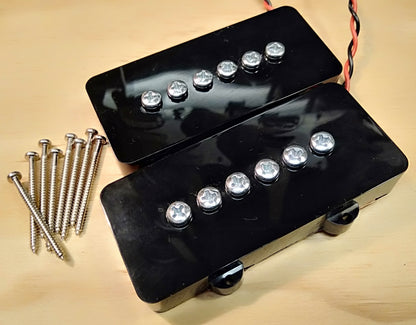

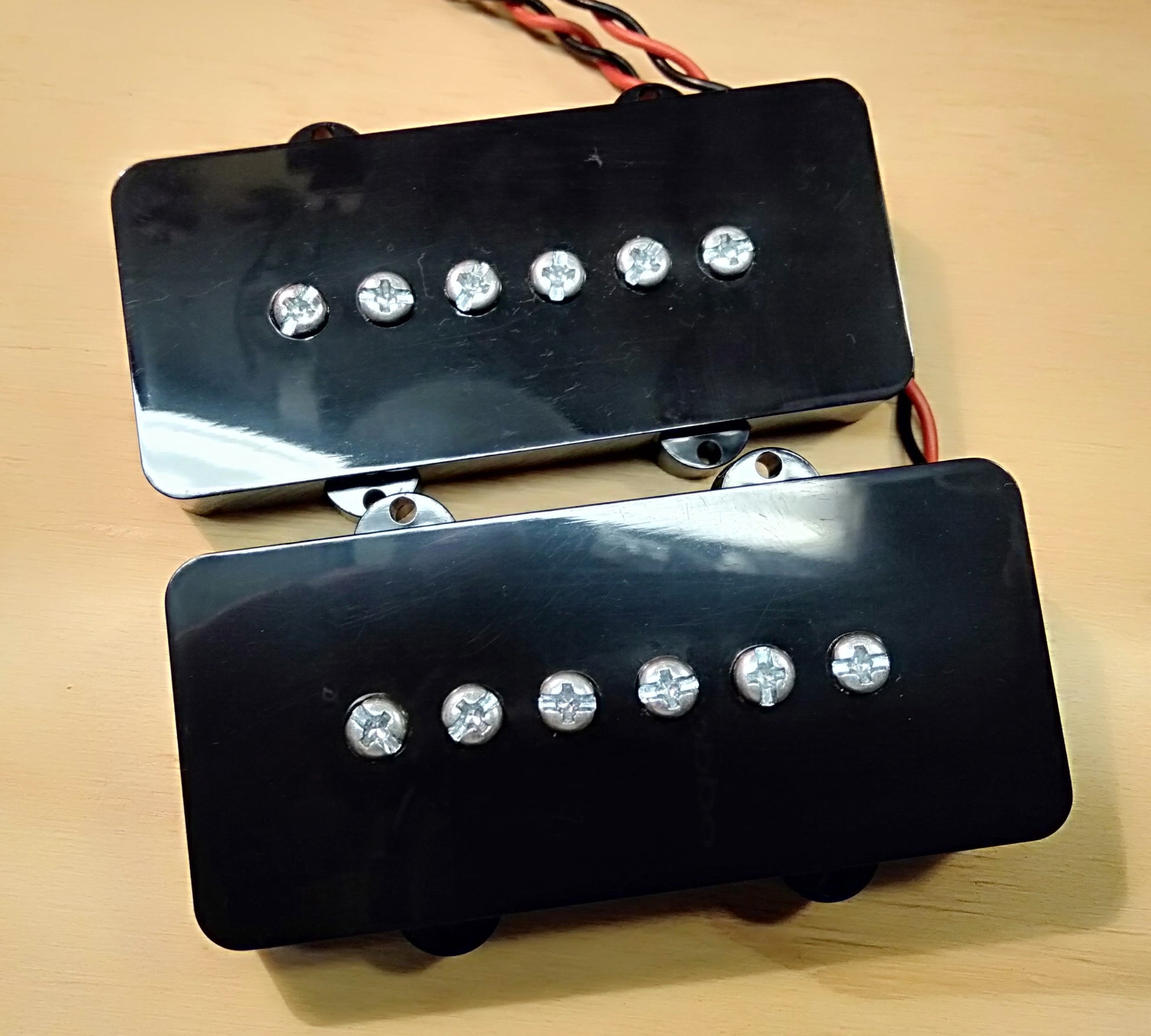

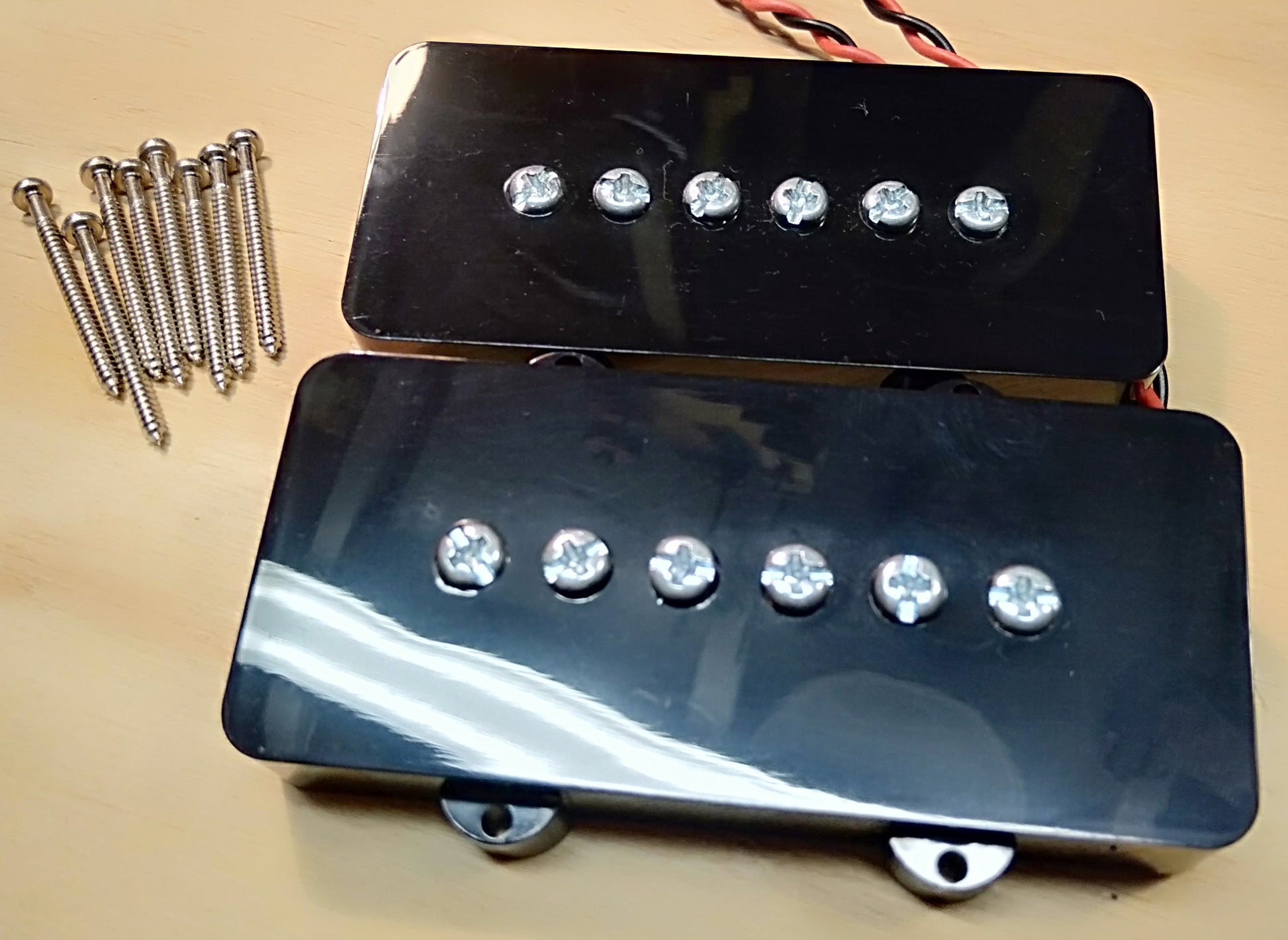

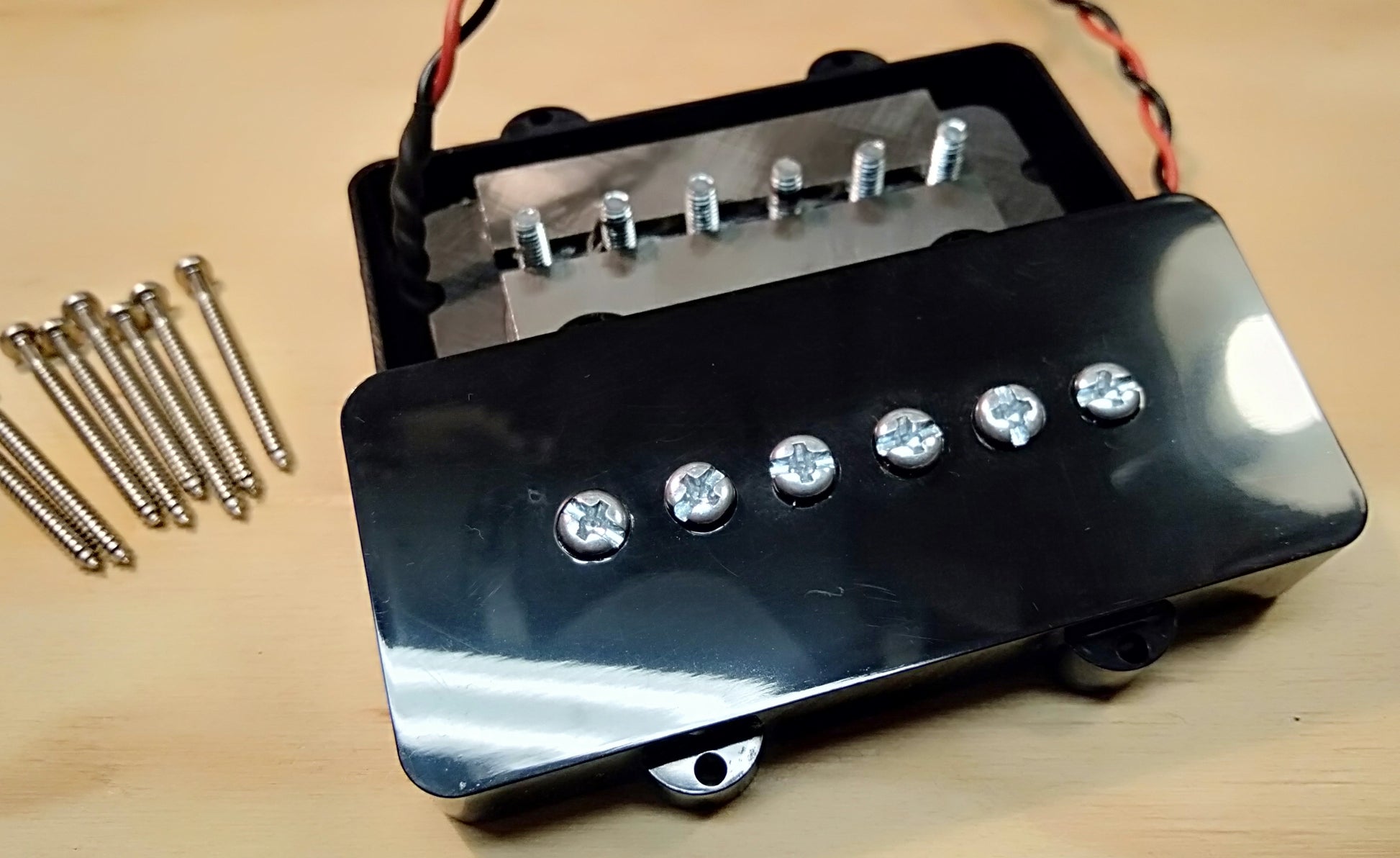

These Tym T-90 JM pickups are hand made by me here in Brisbane and are based on the original P-90 design using A5 bar magnets and threaded pole pieces. These differ in that while they're wound on a P-90 bobbin, I use big poles and overcharged A5 bar magnets. This along with overwinding makes these very high output and full sounding compared to standard JM pickups.

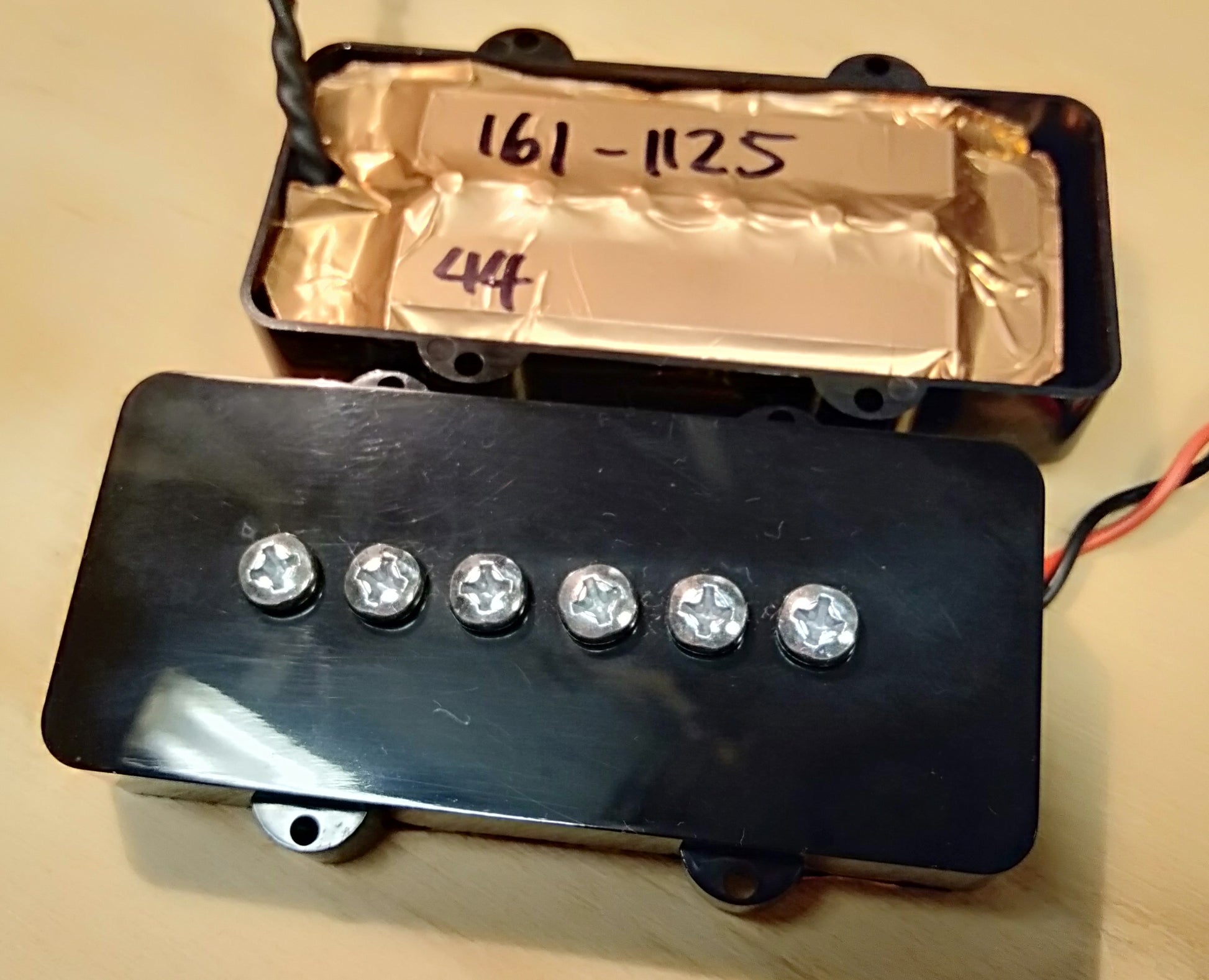

Bridge pickup is around 13K and neck pickup is around 12K. These are hand wound with AWG44 plain enamel wire and fit into any standard JM rout using the original through cover screws. String spacing is 52mm. These are RWRP for humbucking in the middle position. Lead wires are approx. 300mm. None of my pickups are potted.
