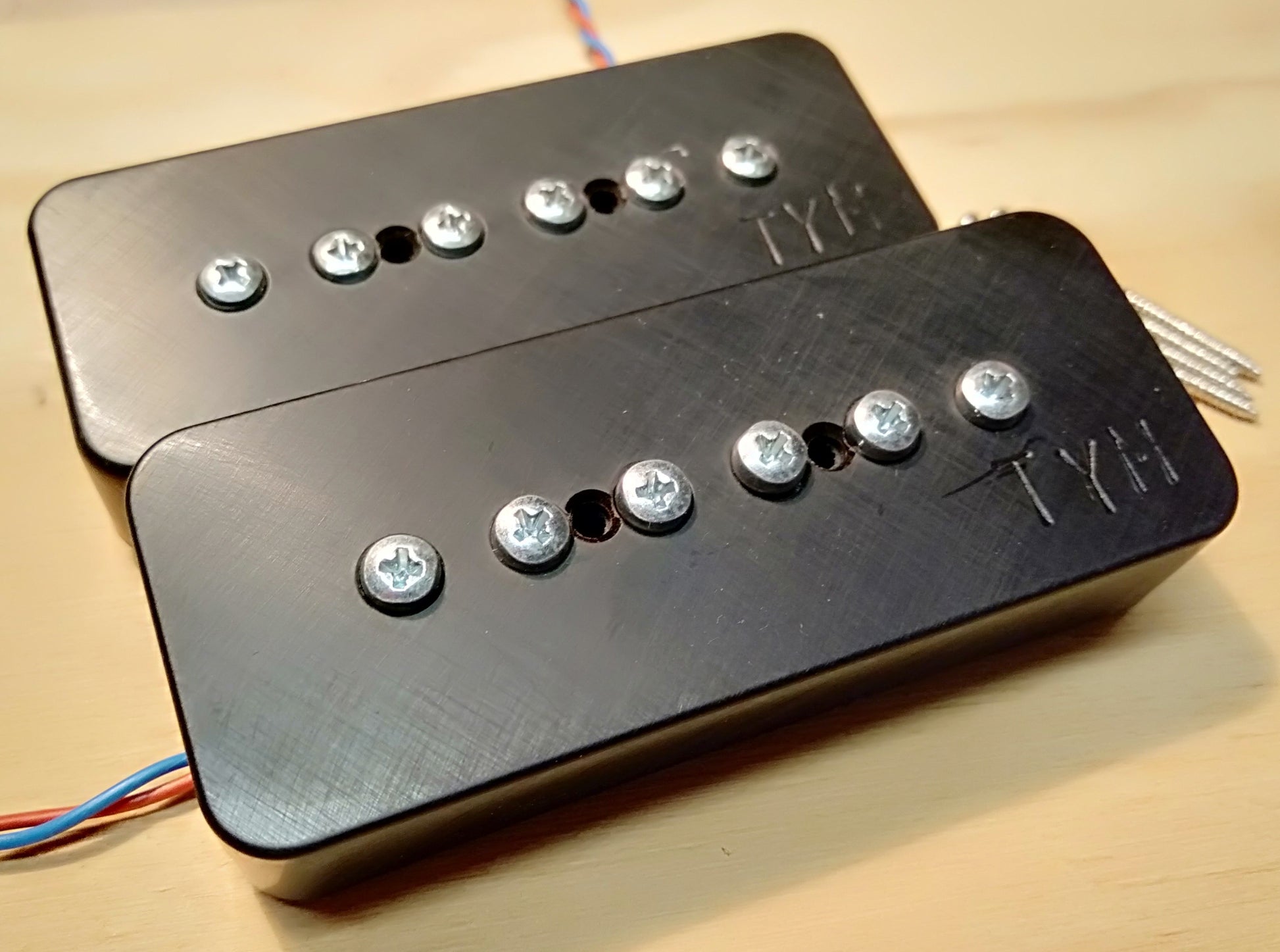

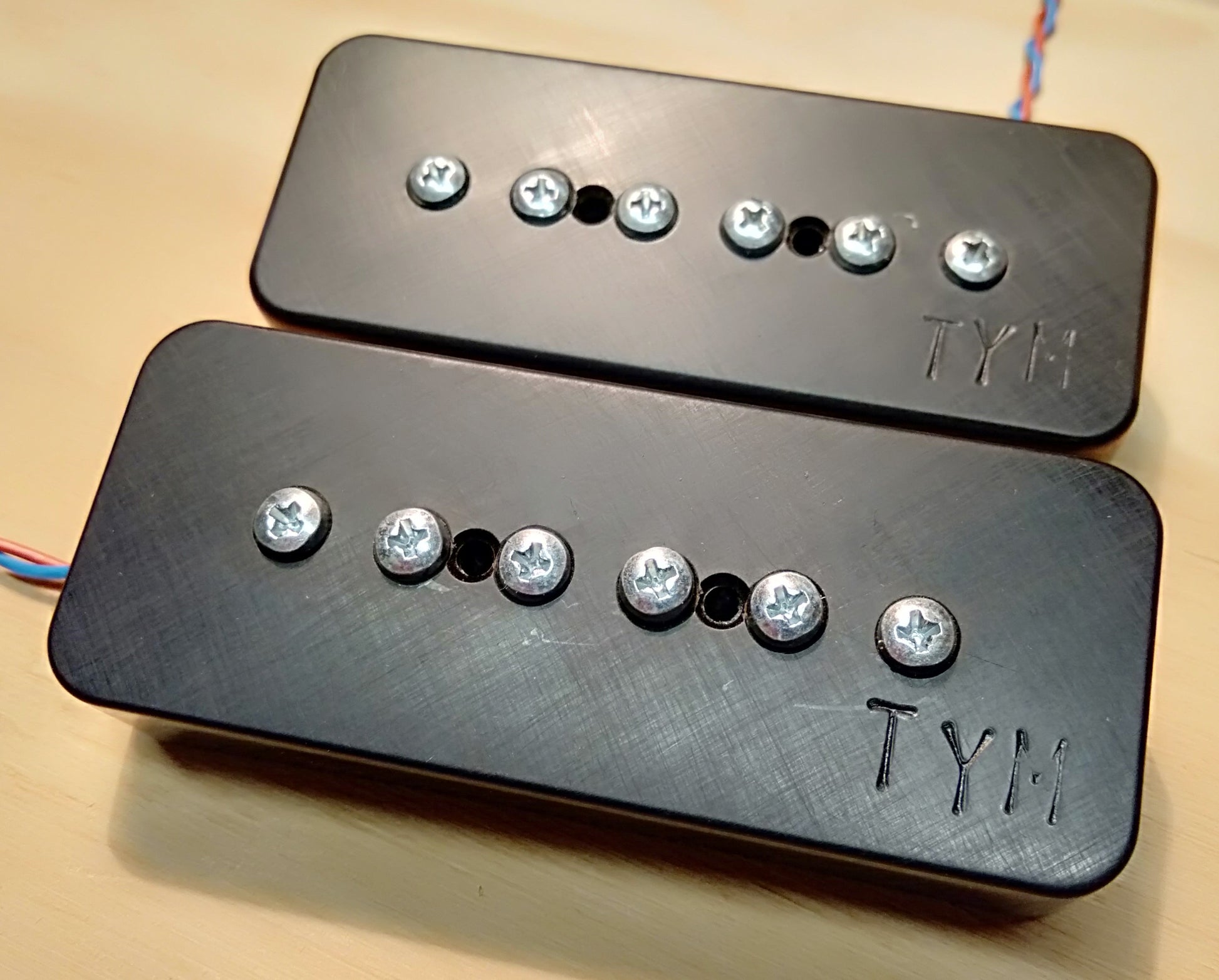

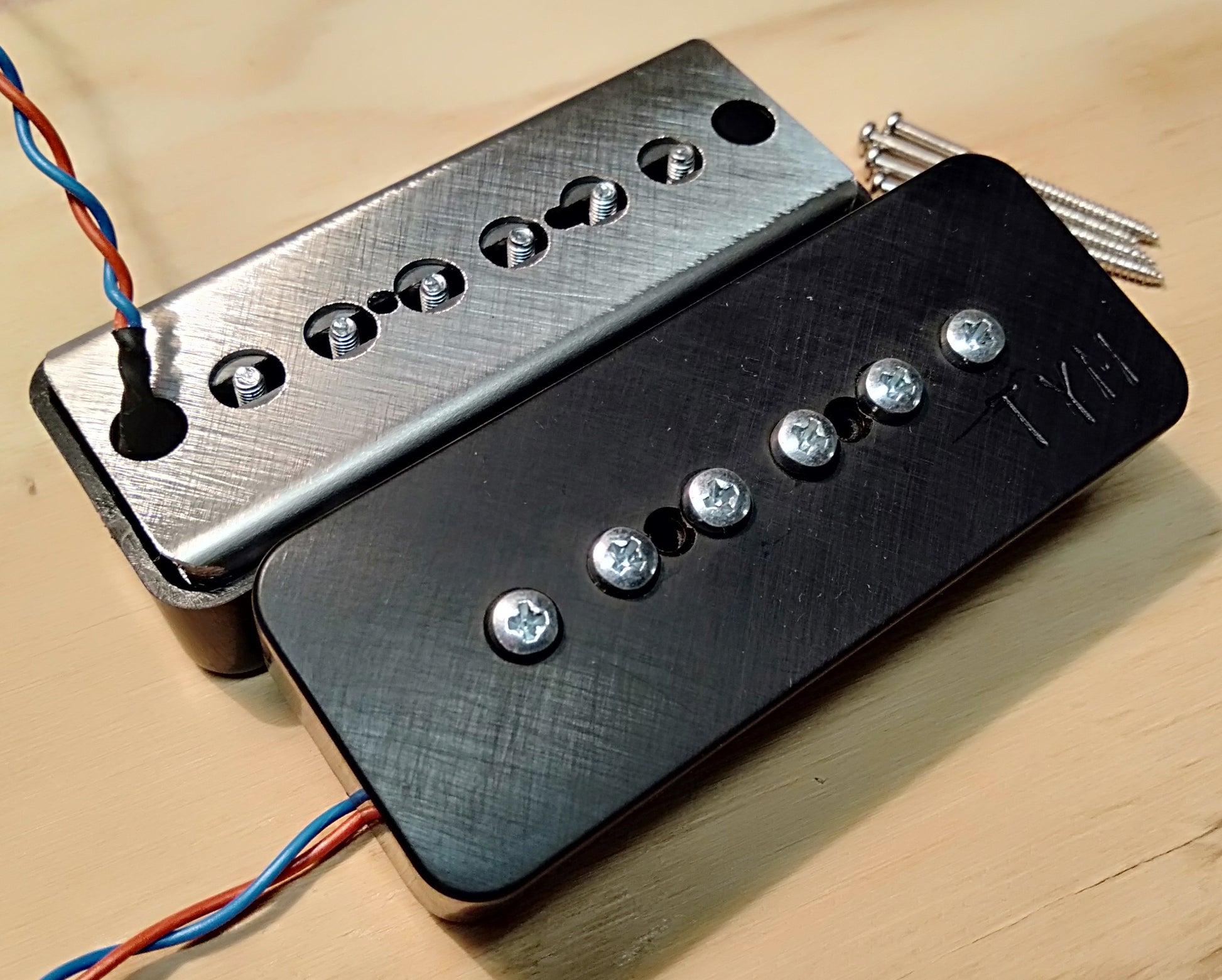

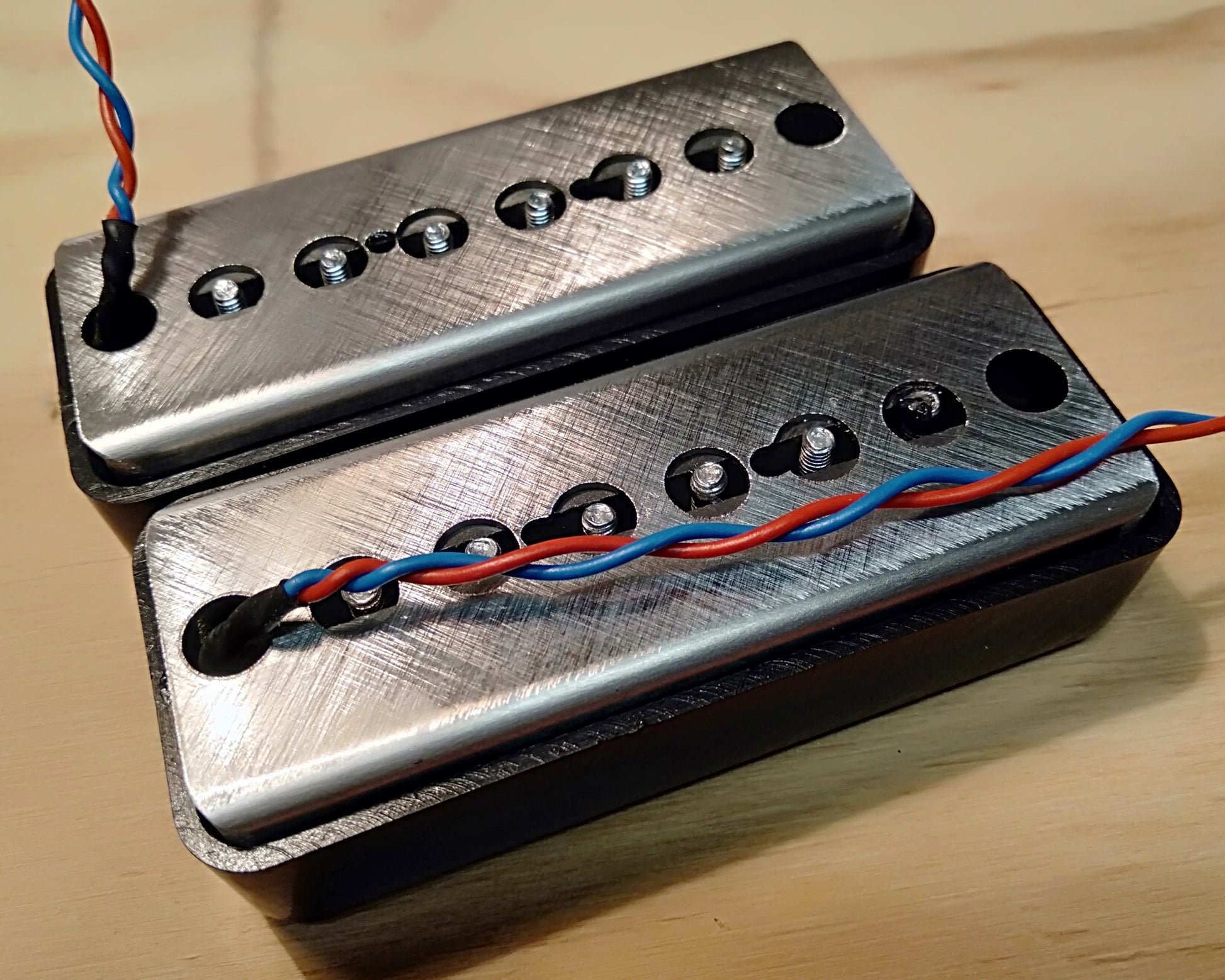

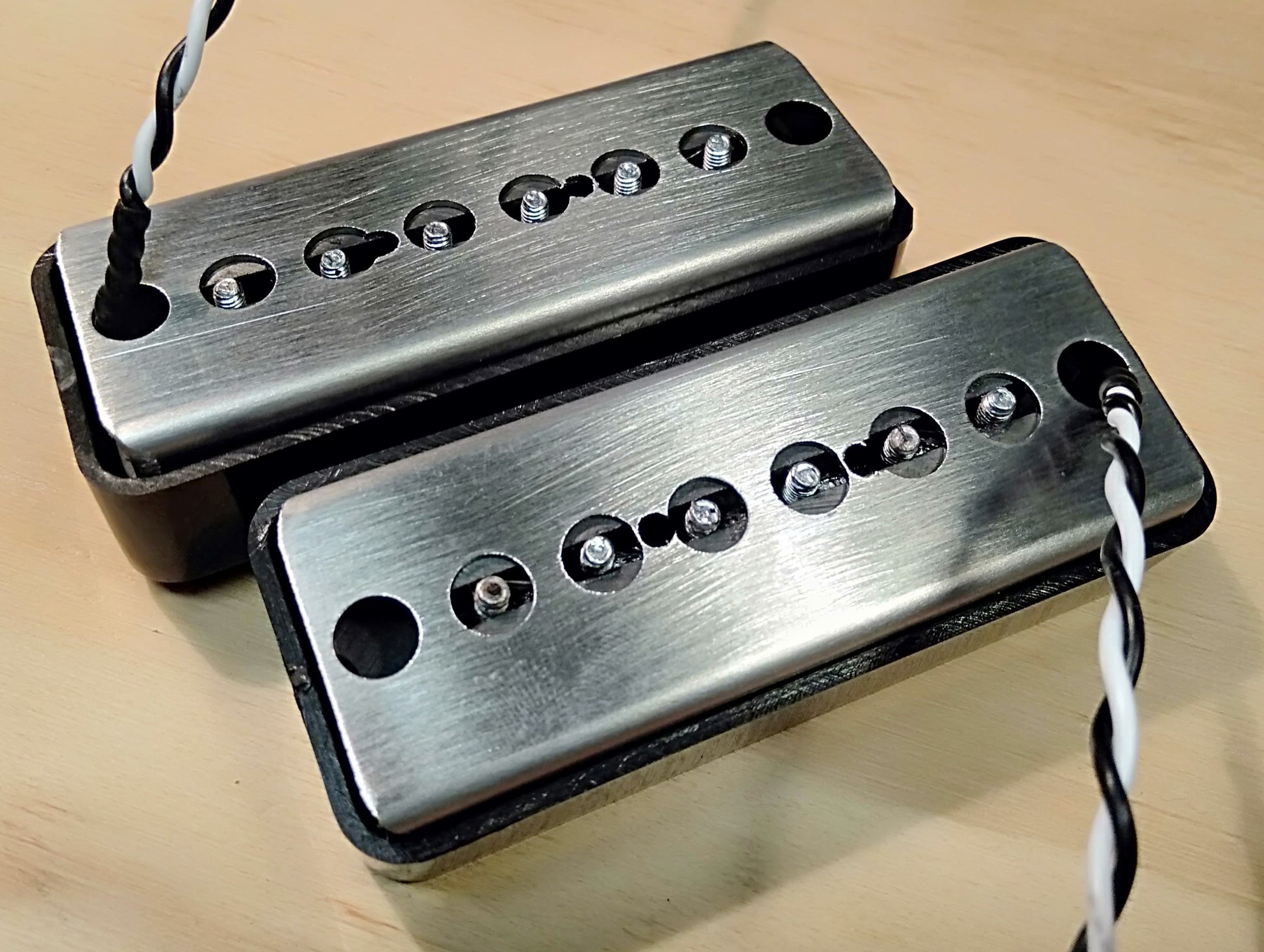

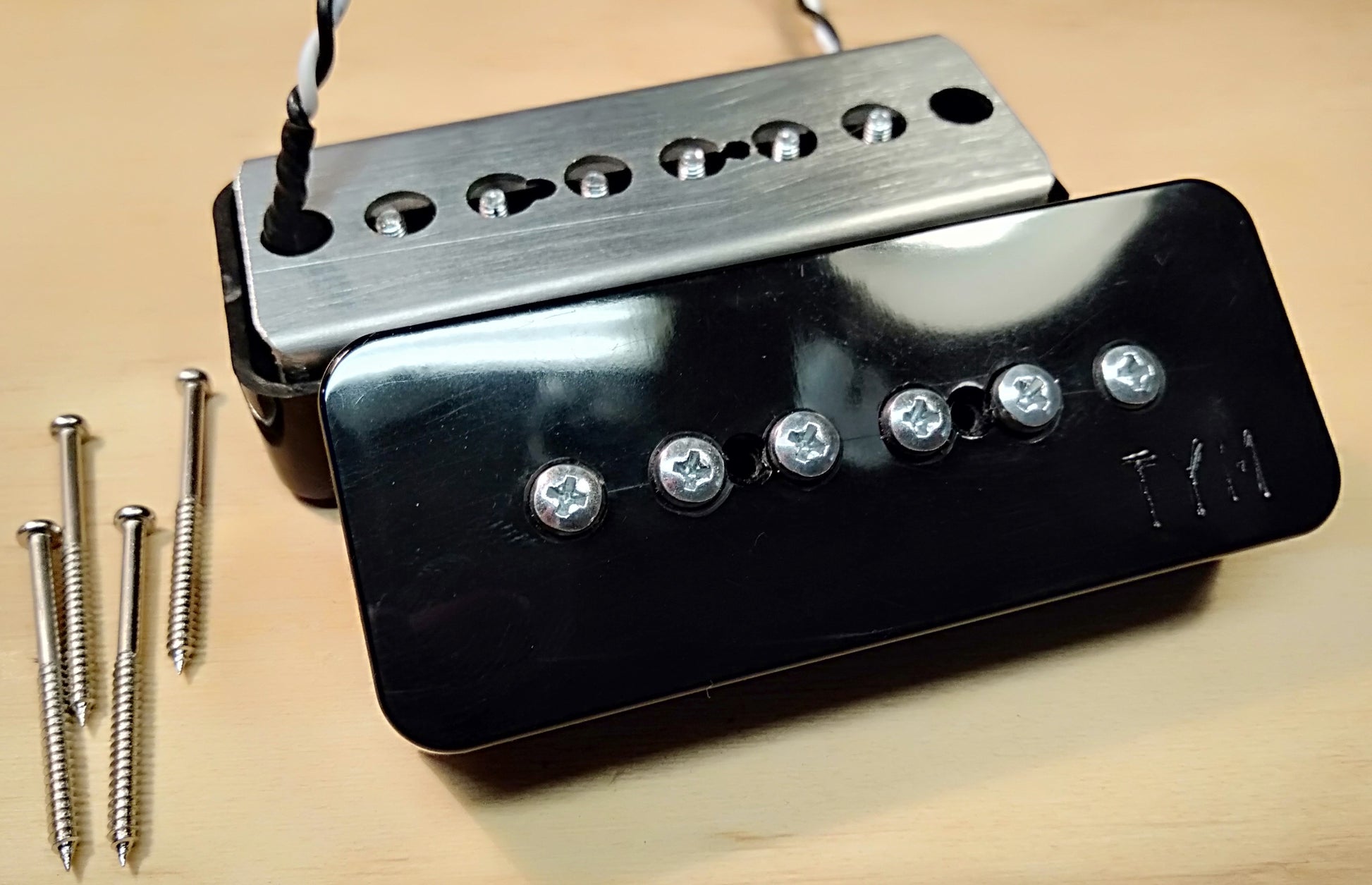

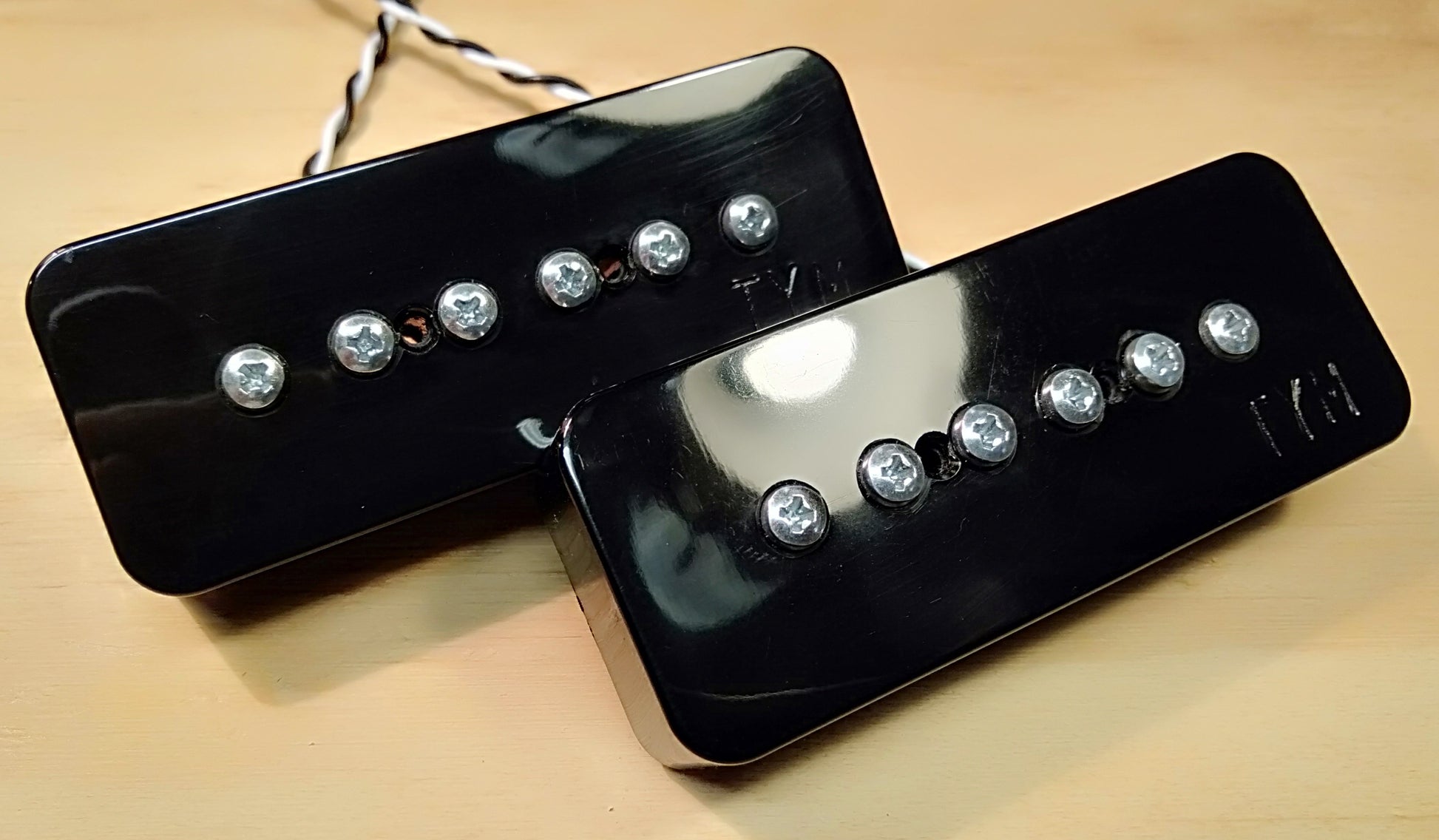

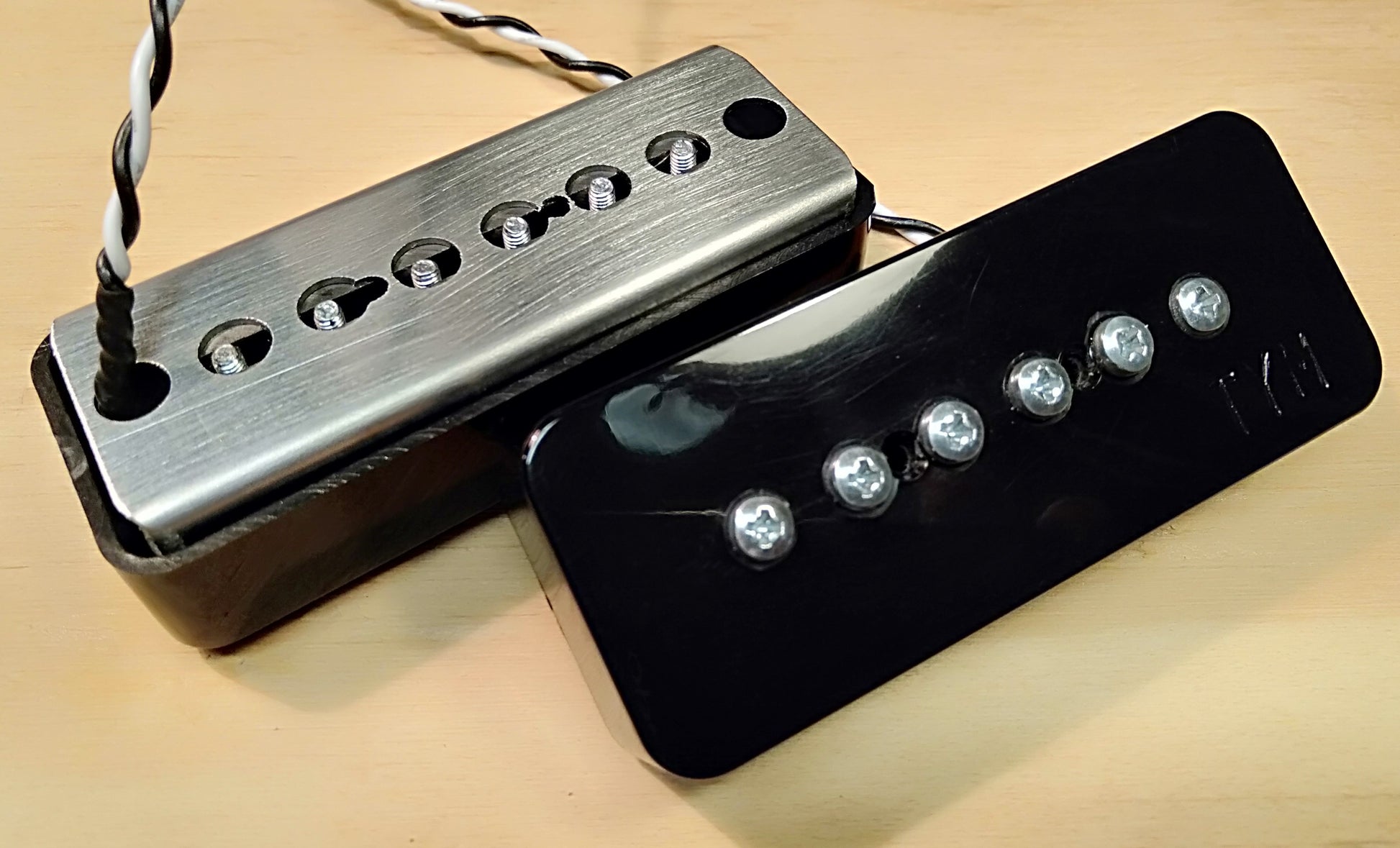

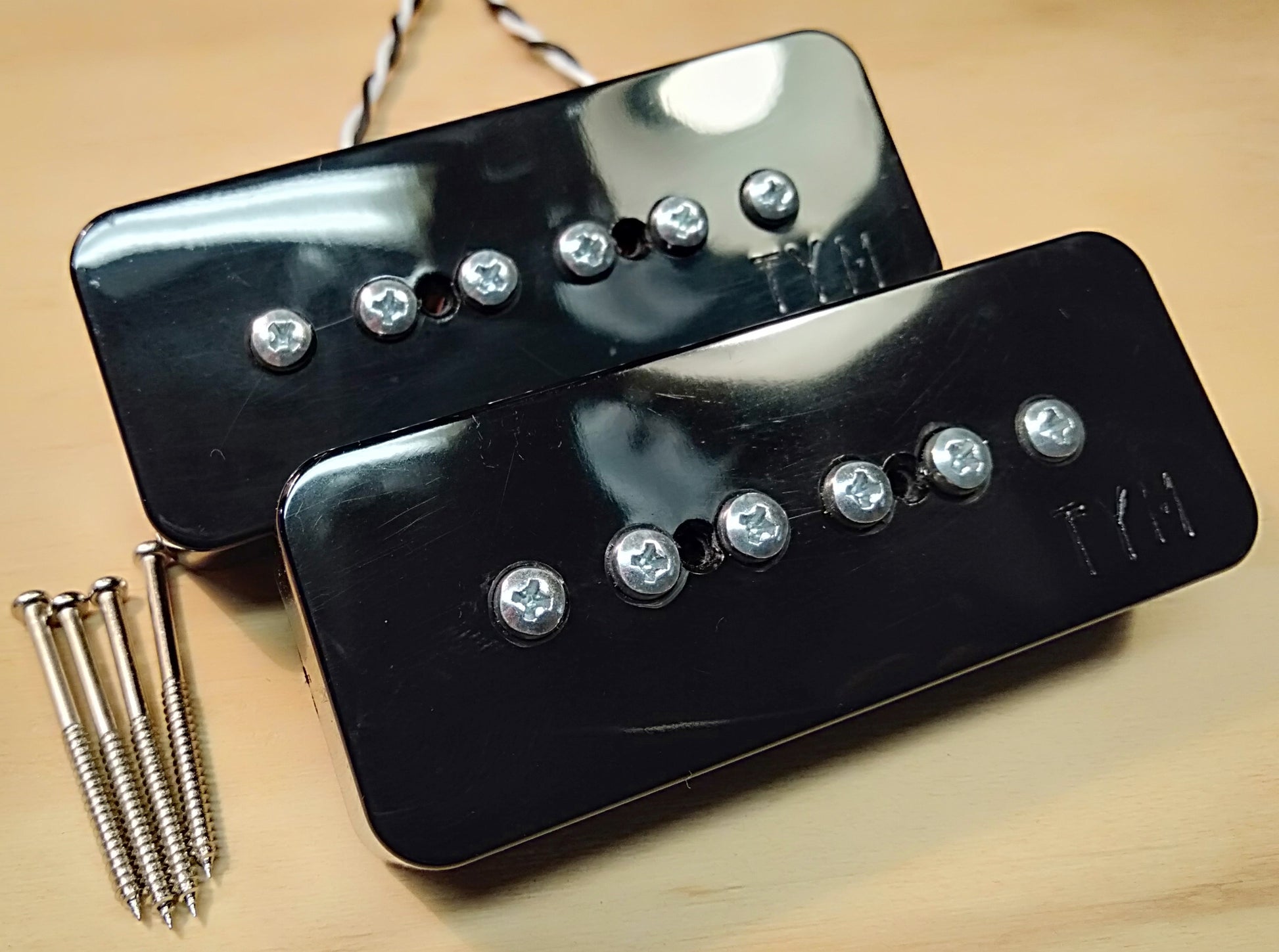

These Tym FMF T-90 pickups are hand made by me here in Brisbane and are a P-90 size single coil inspired by vintage Japanese pickups including the original Aria 1702/Univox Hi-Flier phase II design using ceramic bar magnets and pole pieces along with the unique feature of a "claw" inside the cover as used on many vintage Japanese pickups. I make these for my own TMI guitars.
The claw T-90 is unique to Tym guitars. Check my blog HERE for more info.
Bridge pickup is 10 K and neck pickup is 9 K. These are hand wound with AWG43 plain enamel wire and fit into any standard P-90 rout using the original 2 through cover/bobbin screws. Bridge spacing is 52mm and neck is 50mm. These are RWRP for humbucking in the middle position. Lead wires are approx. 300mm and are blue and red. These are "slightly" deeper than standard P-90 at 19/20mm but easily fit in most body cavities. None of my pickups are potted.
