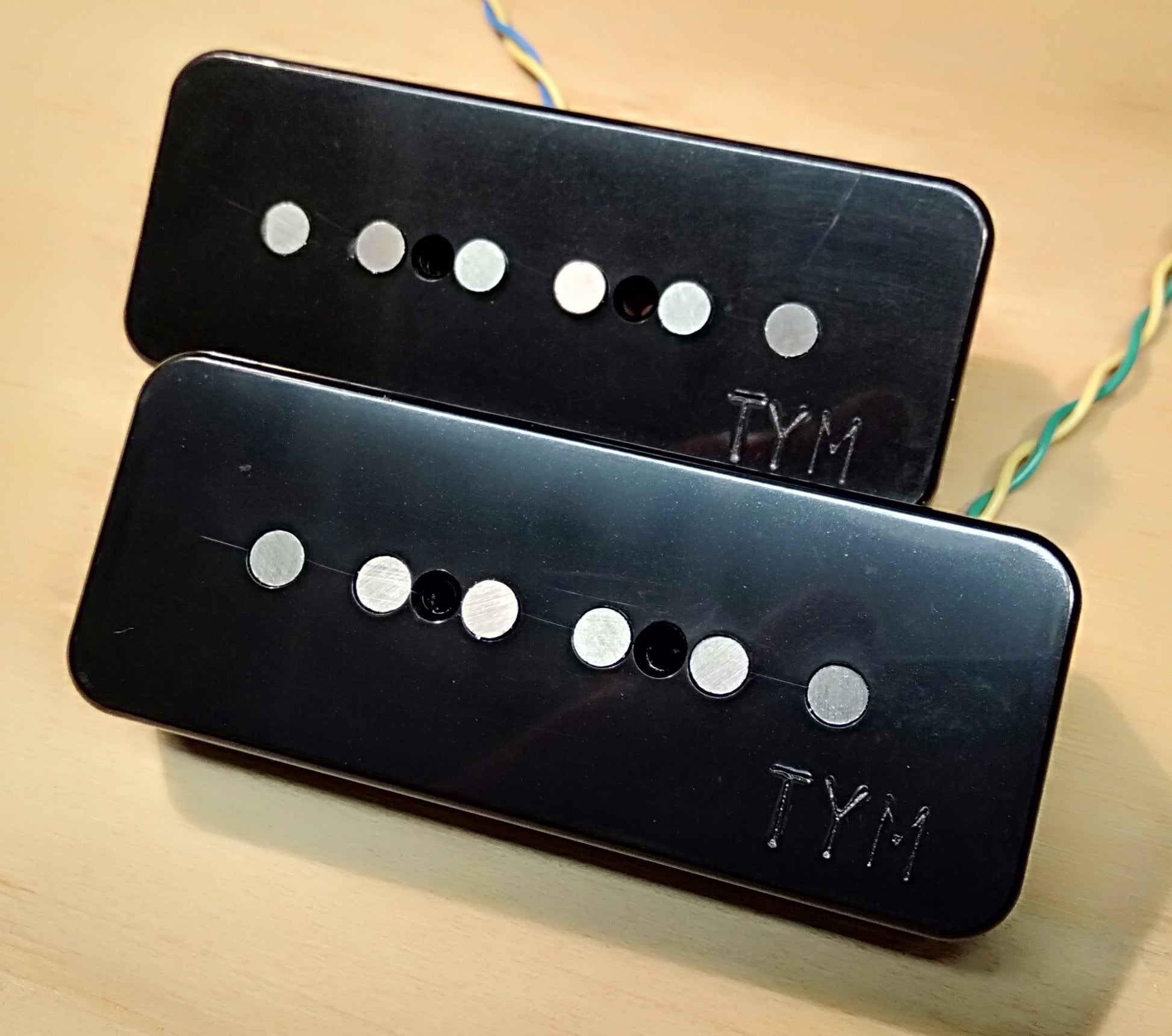

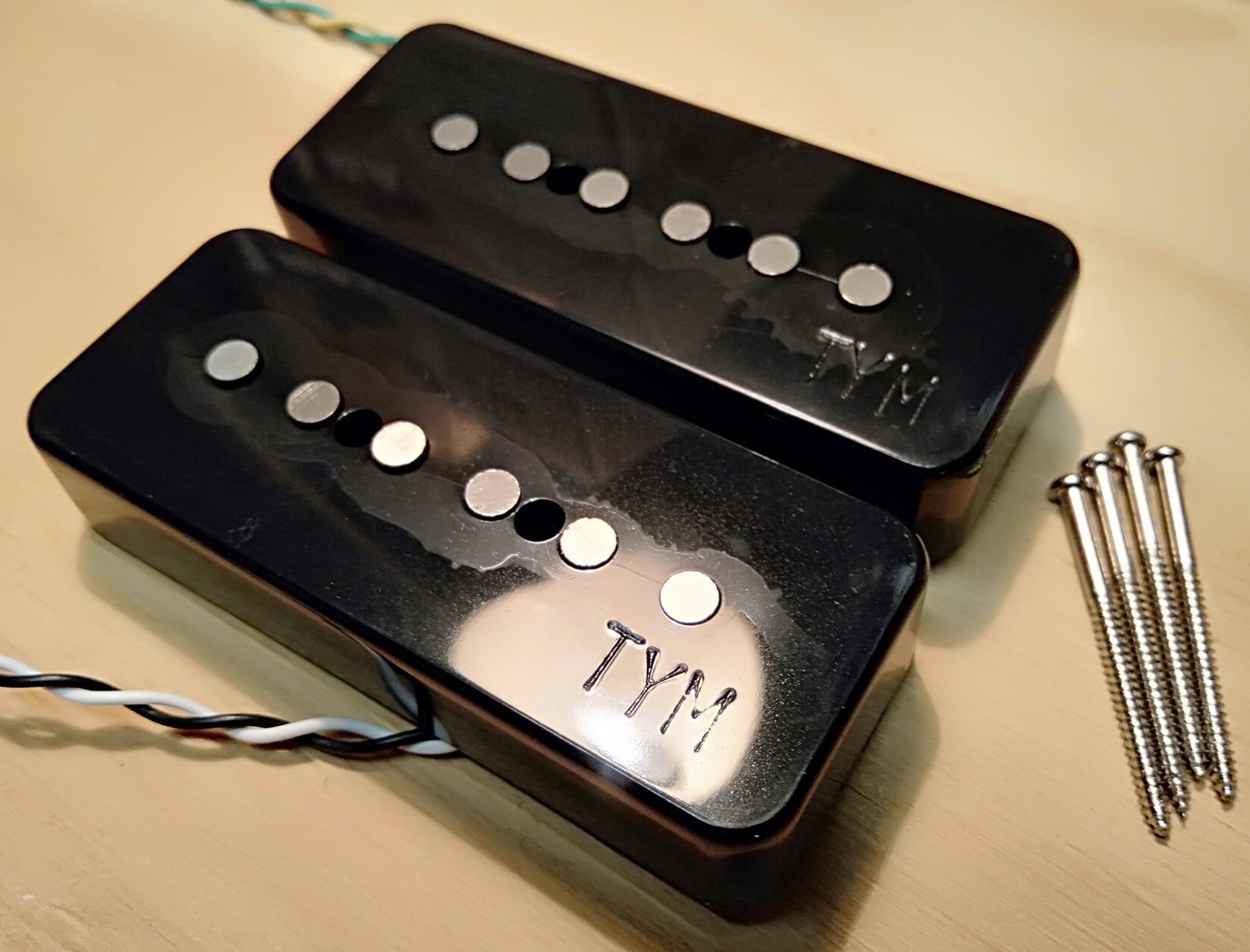

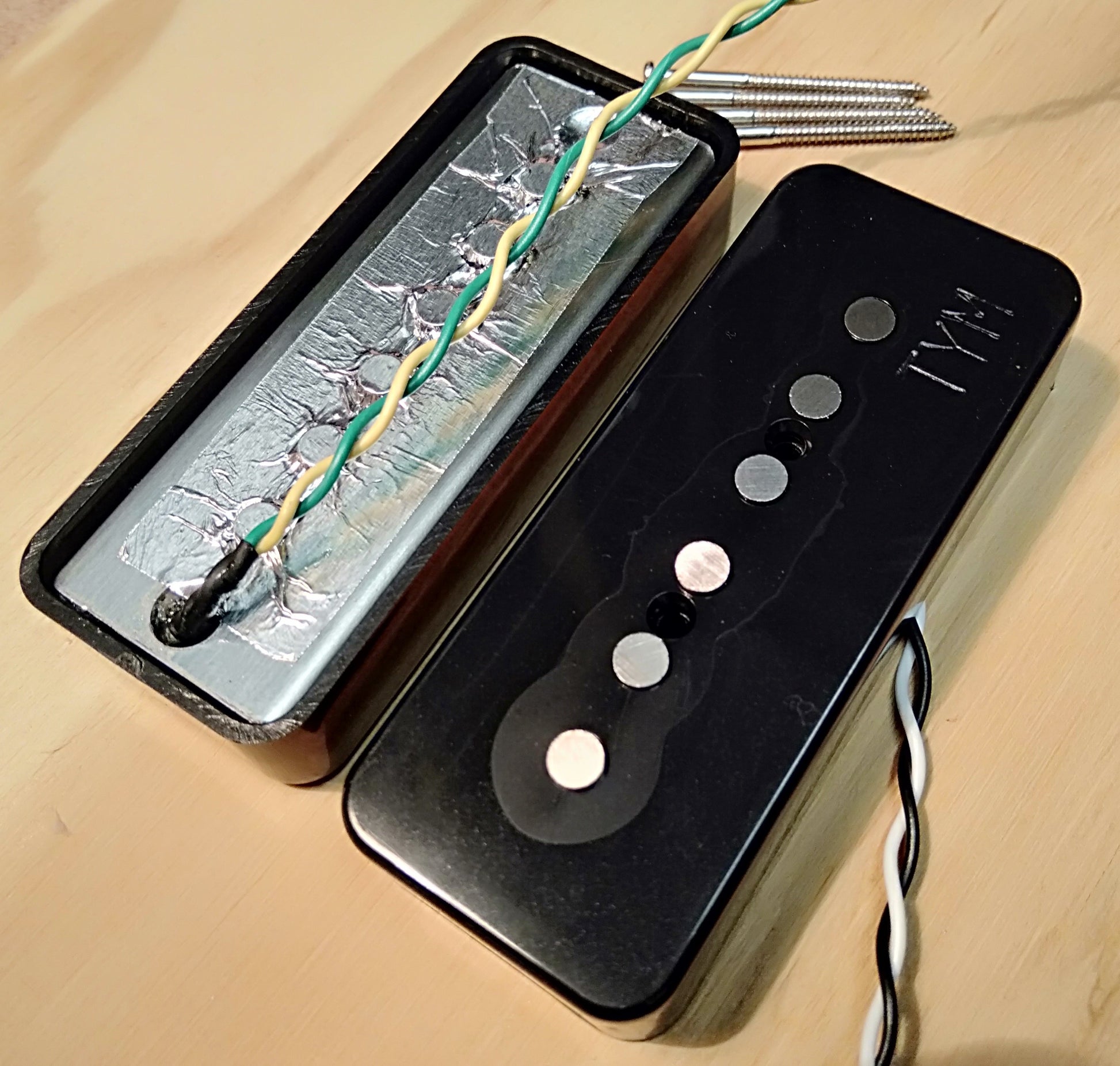

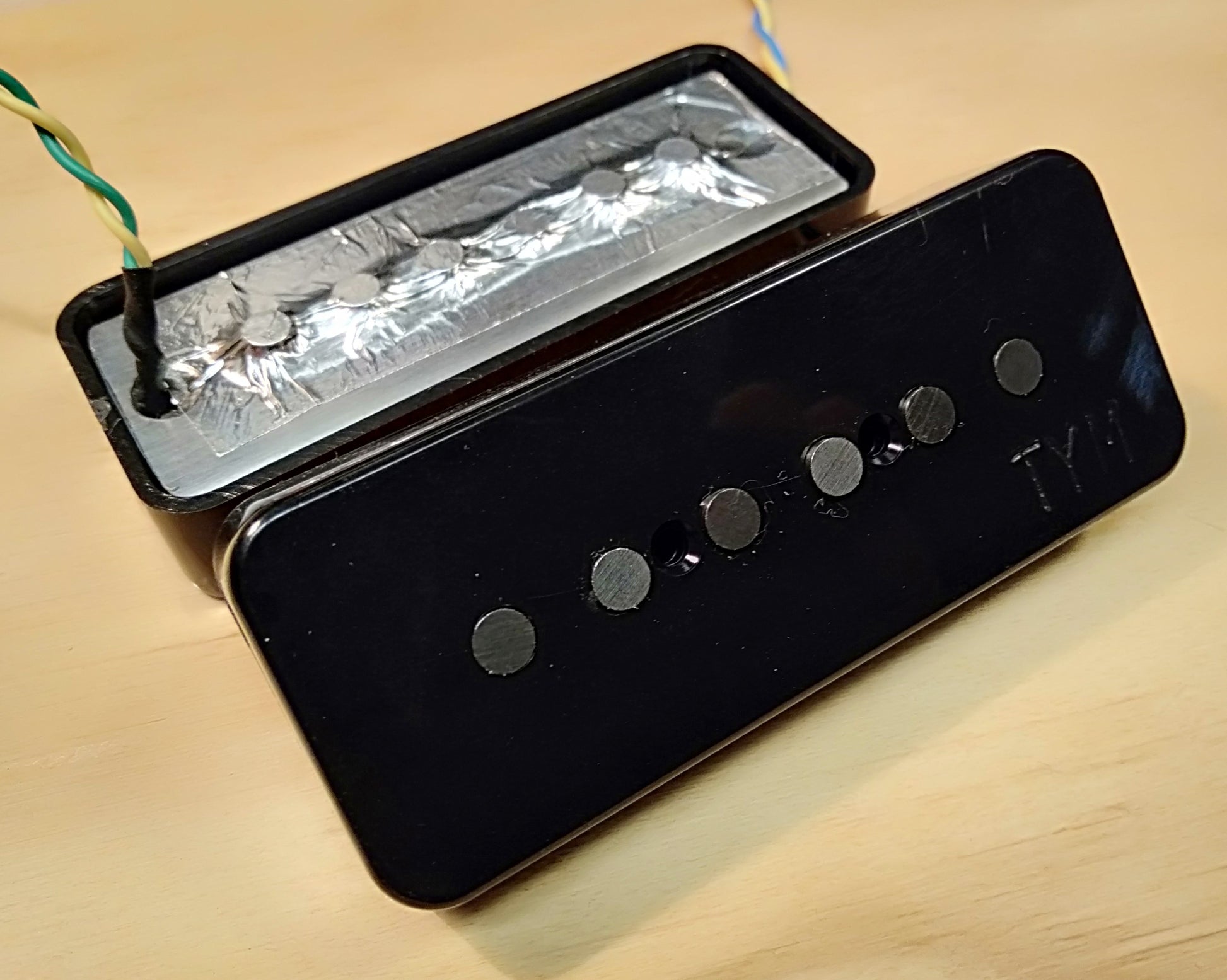

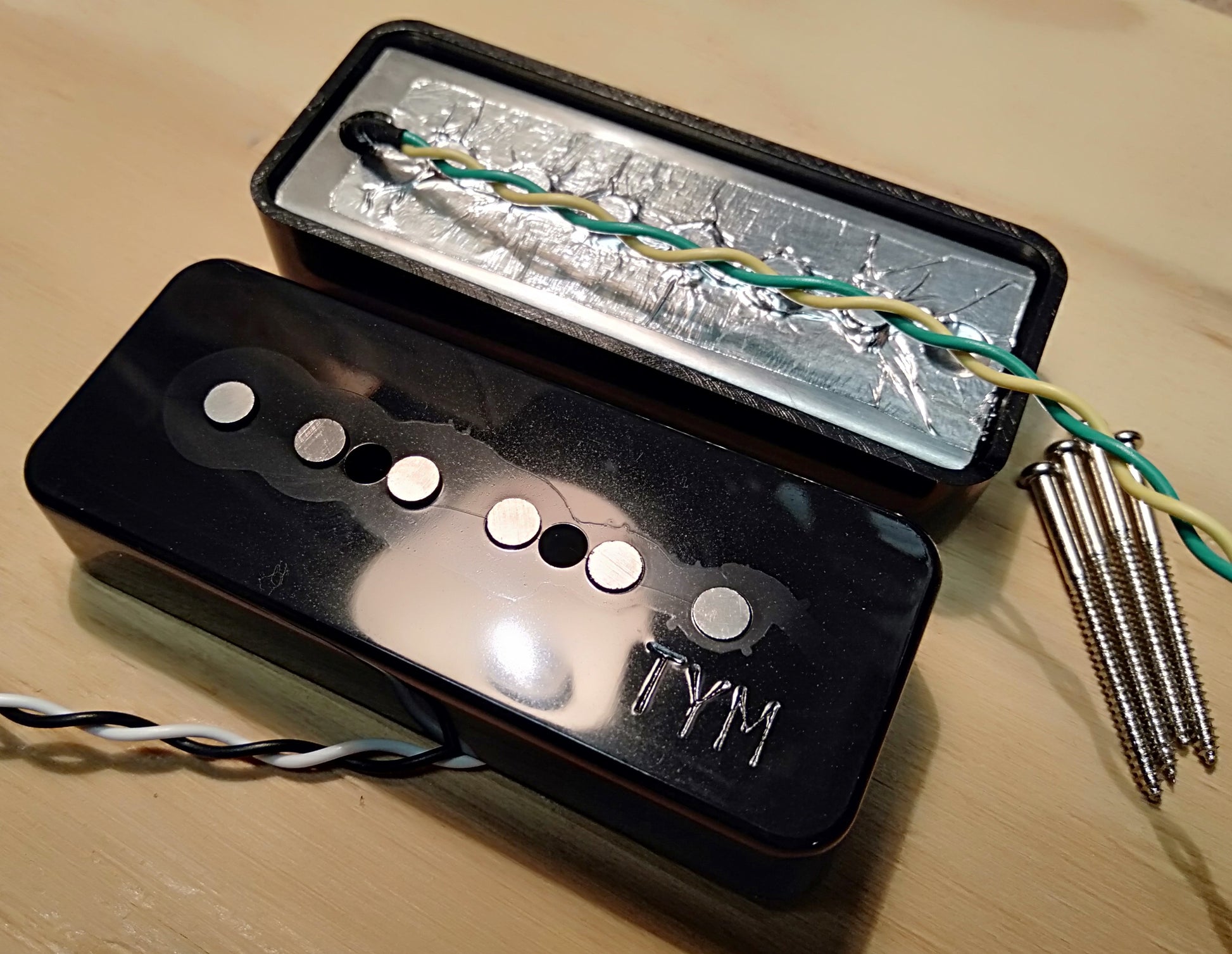

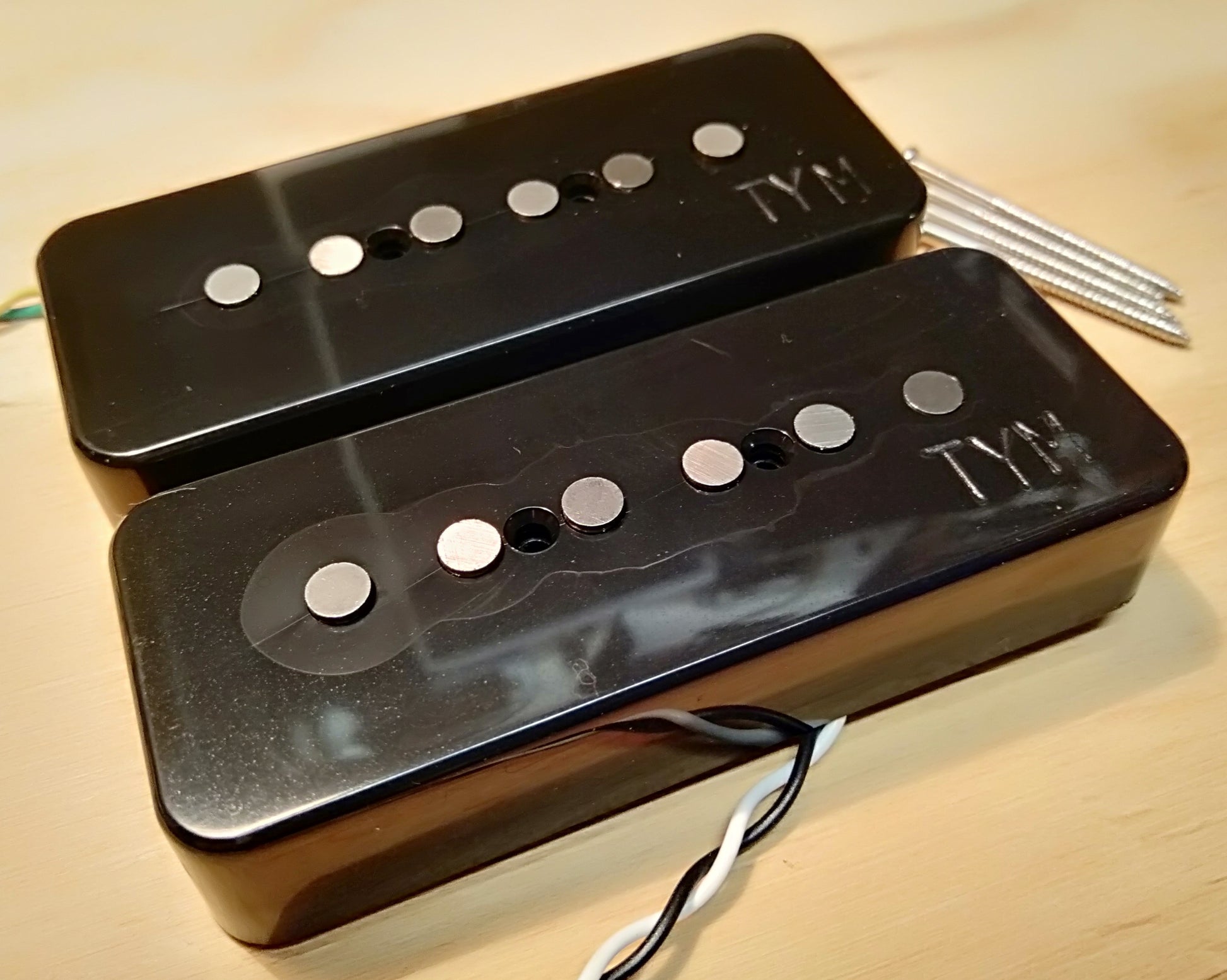

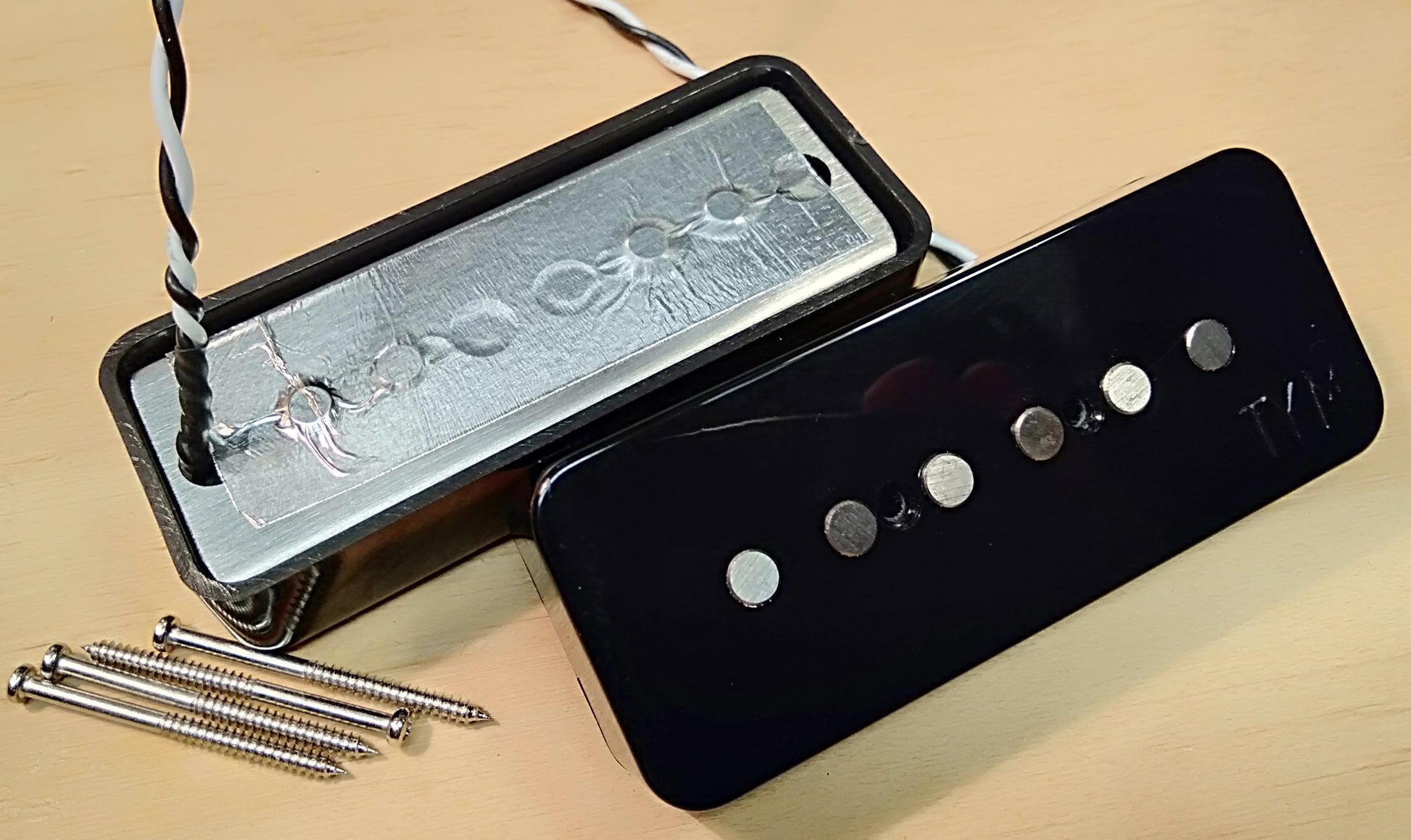

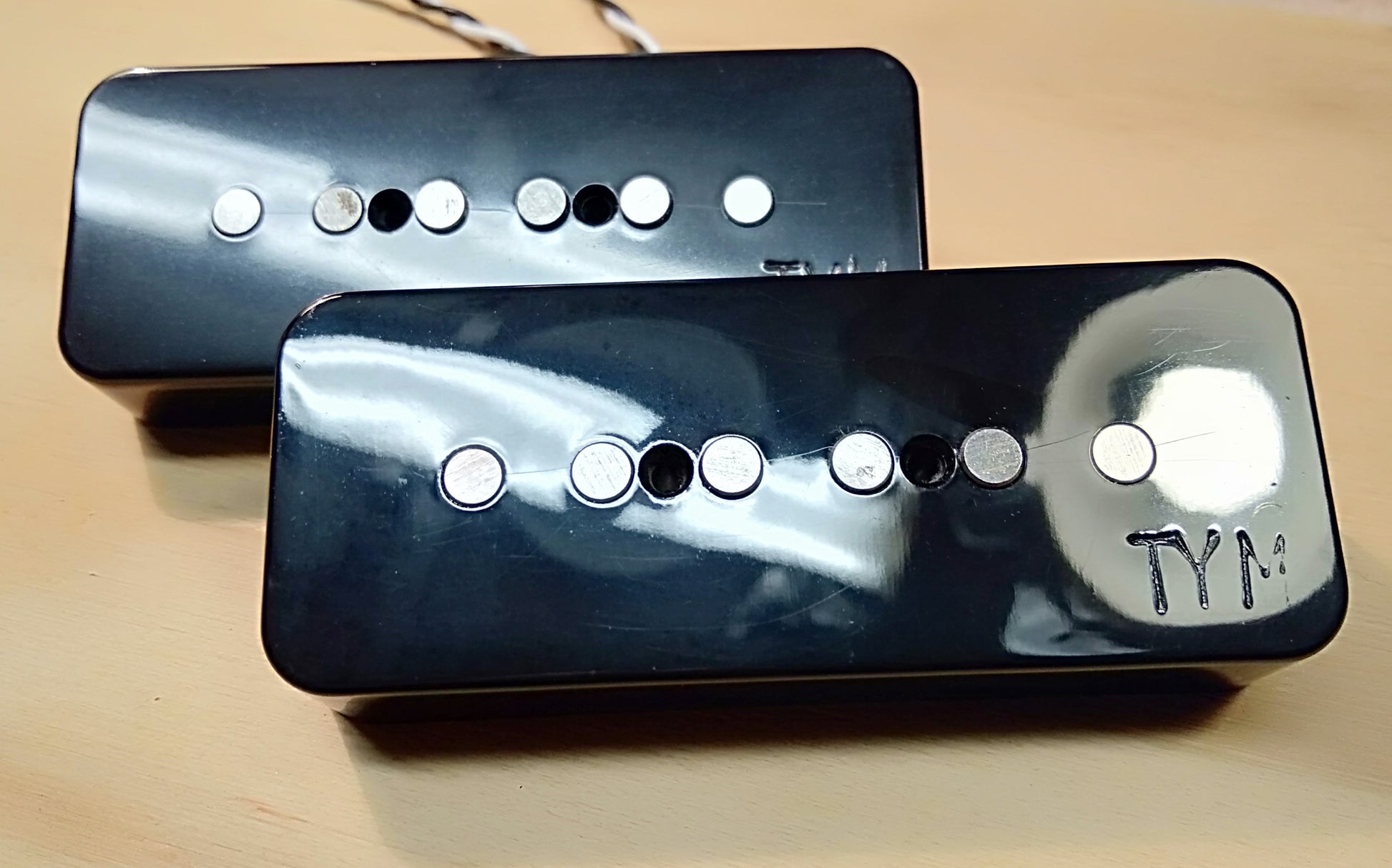

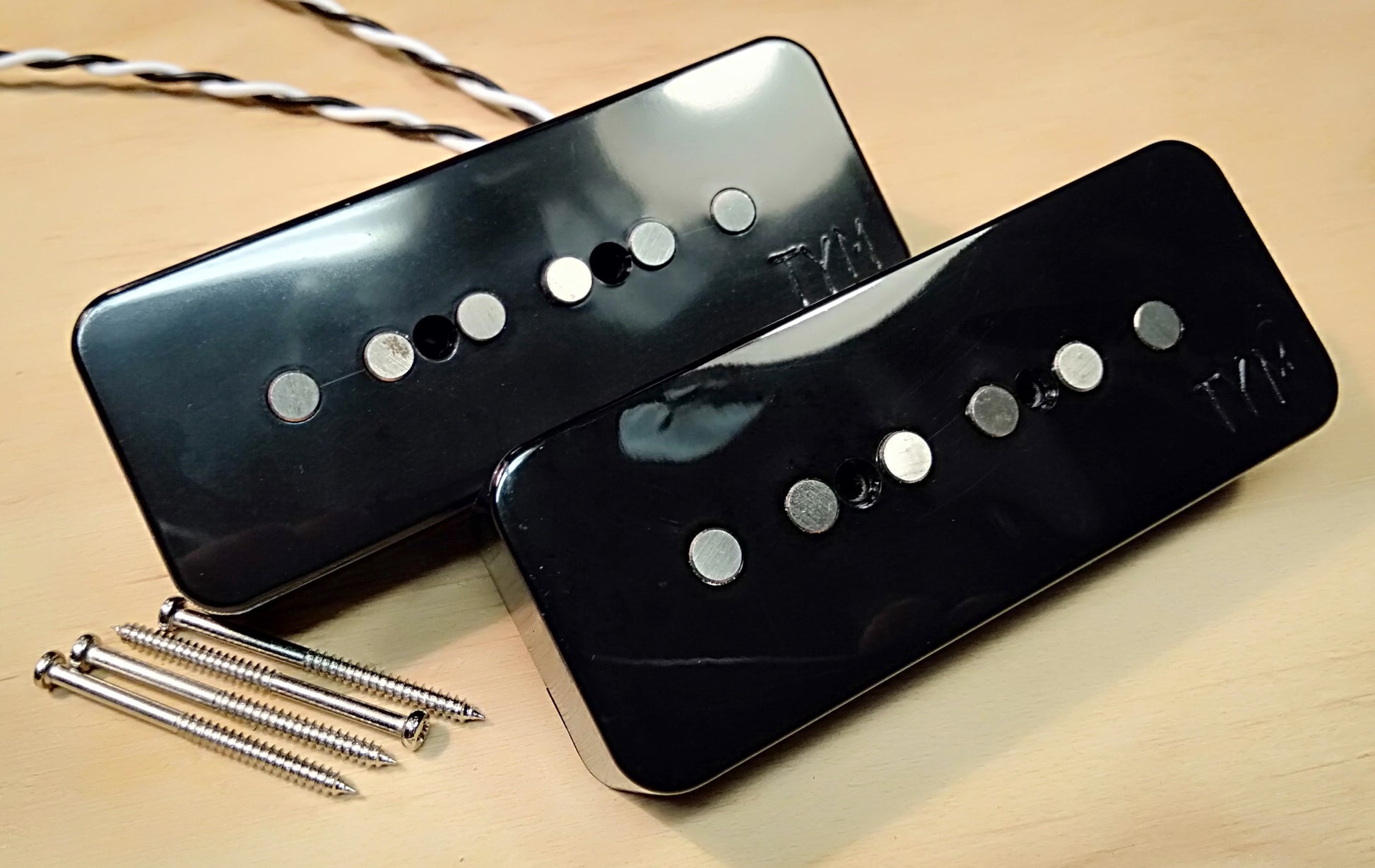

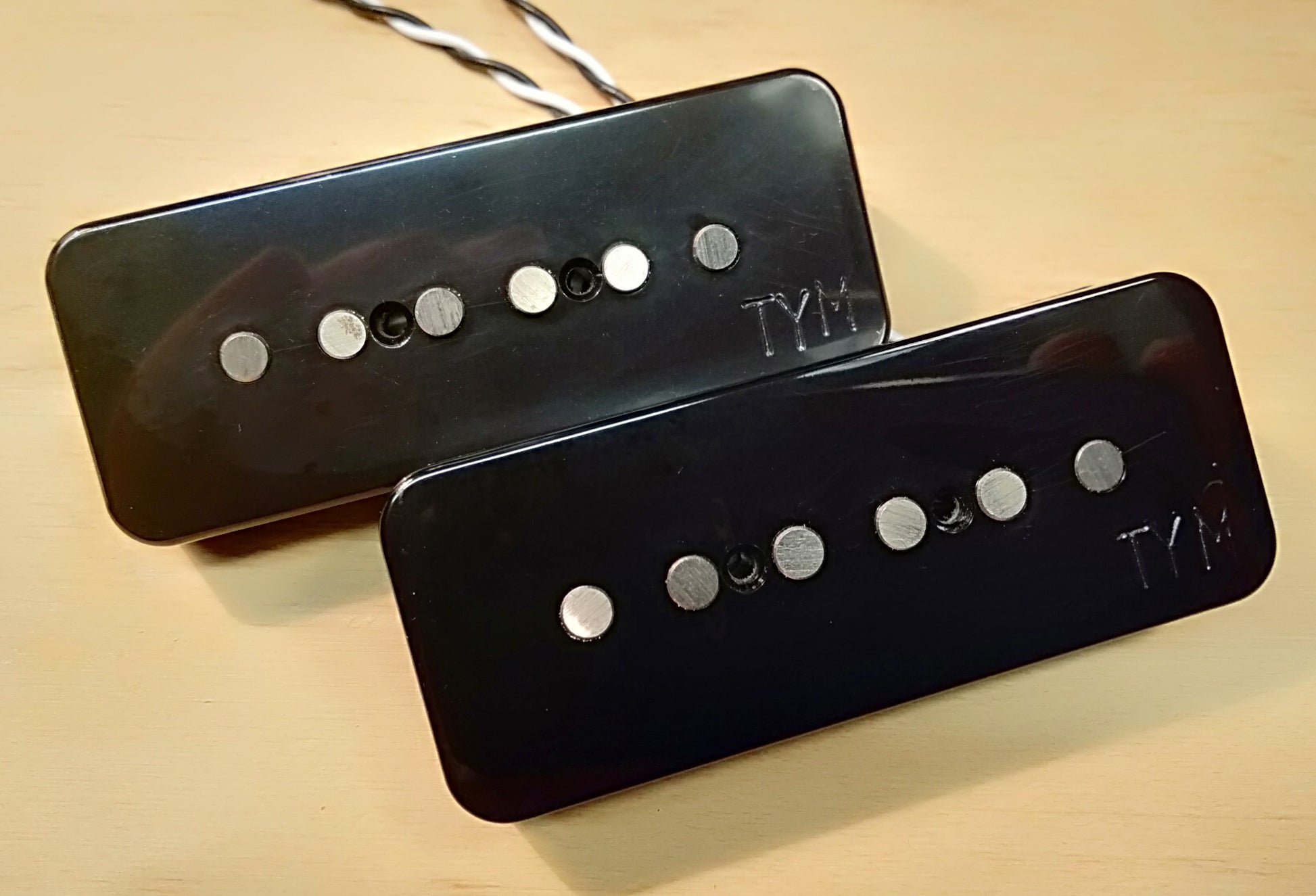

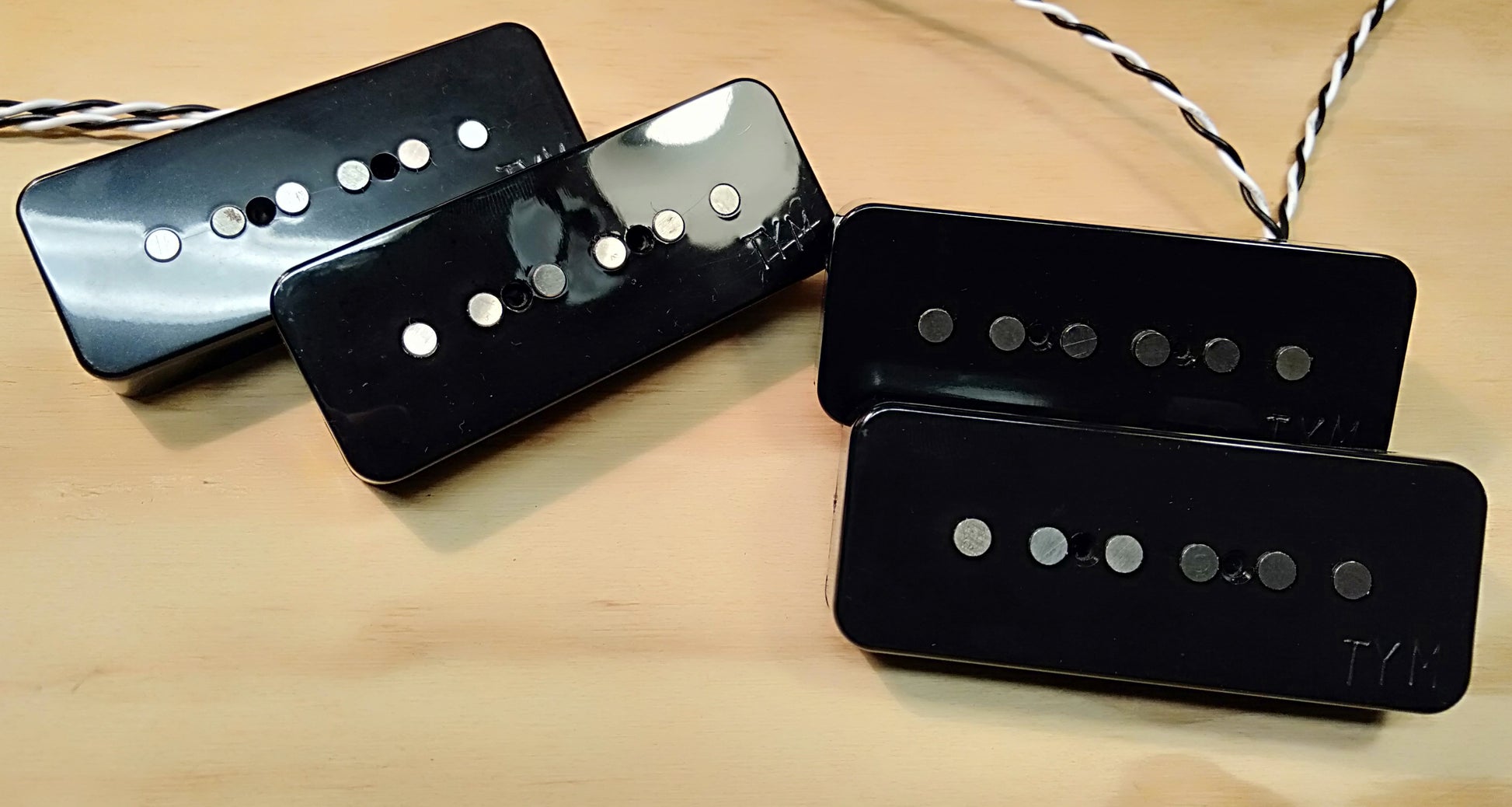

These Tym FMF T-90 pickups are hand made by me here in Brisbane and are based on the original P-90 design using A5 slug magnets instead of threaded pole pieces. These also have the unique feature of a "claw" inside the cover as used on the Fender Jaguar and many vintage Japanese pickups. I make these for my own TMI guitars.
The claw T-90 is unique to Tym guitars. Check my blog HERE for more info.

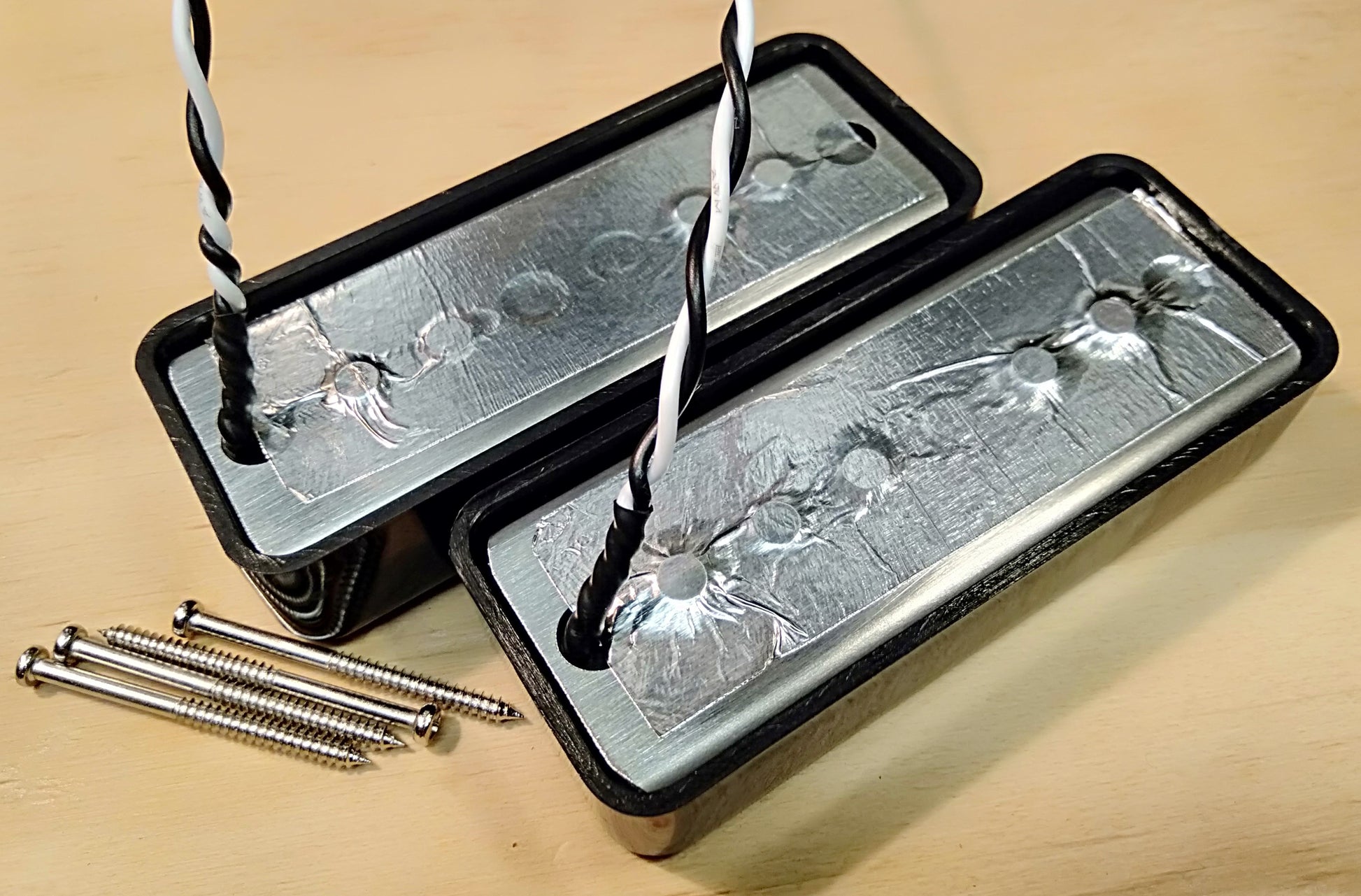

Bridge pickup is 11.2 K and neck pickup is 9.8 K. These are hand wound with AWG44 plain enamel wire and fit into any standard P-90 rout using the original 2 through cover/bobbin screws. Bridge spacing is 52mm and neck is 50mm. These are RWRP for humbucking in the middle position. Lead wires are approx. 300mm and are black and white for bridge and green and yellow for neck. None of my pickups are potted.
