Solid state bridge rectifier, Single Phase, 400 V, 35 A, Module, 4 Pins, 1.1 V

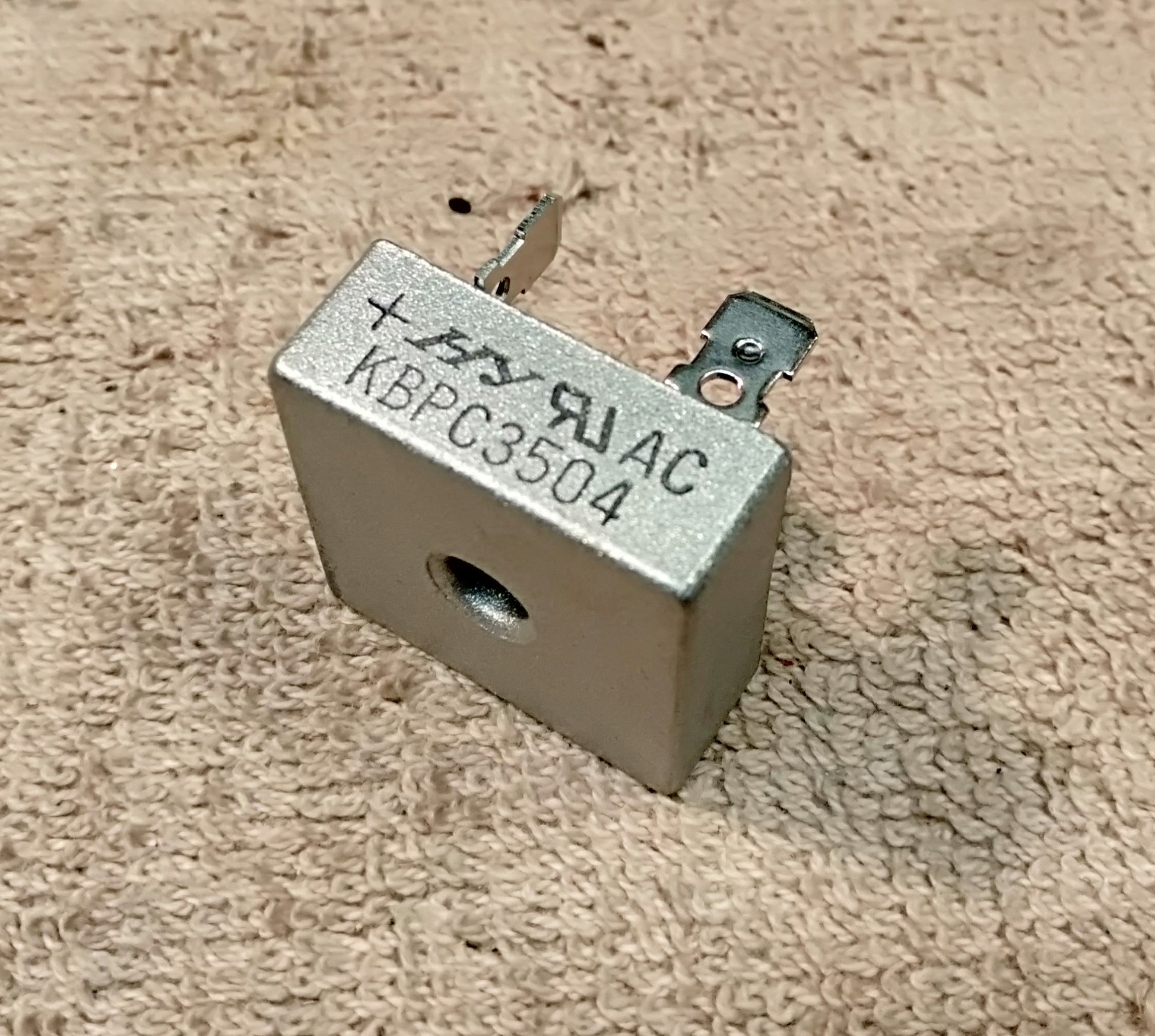

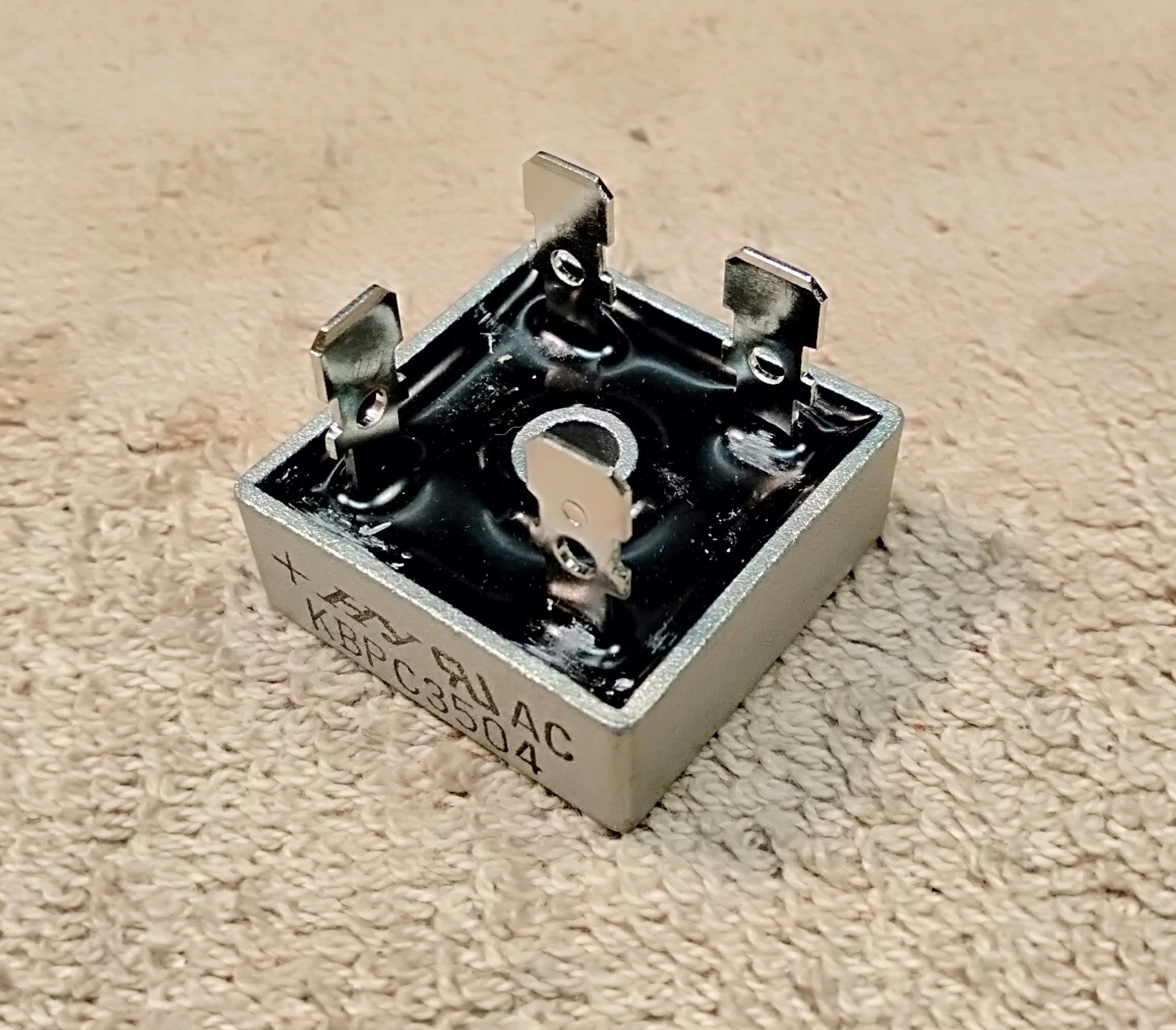

The KBPC3504 from Multicomp Pro is a glass passivated bridge rectifier with solderable 0.25" FAST ON terminals. The rectifier bridge consists of four silicon junctions connected as a full bridge. It has electrically isolated base -2000volts for maximum heat dissipation.
Maximum recurrent peak reverse voltage Vrrm is 400V Maximum RMS bridge input voltage Vrms is 280V Maximum average forward rectified output current I(AV) at Tc = 55°C is 35A Peak forward surge current 8.3ms single half sine wave super imposed on rated load Ifsm is 400A Operating temperature ranges from -55°C to +150°C Maximum reverse current at rate DC blocking voltage per element at Tj = 25°C is 10A Low forward voltage drop.
Length29 mm Width29 mm Body Height11.5 mm Overall Height22.3 mm
